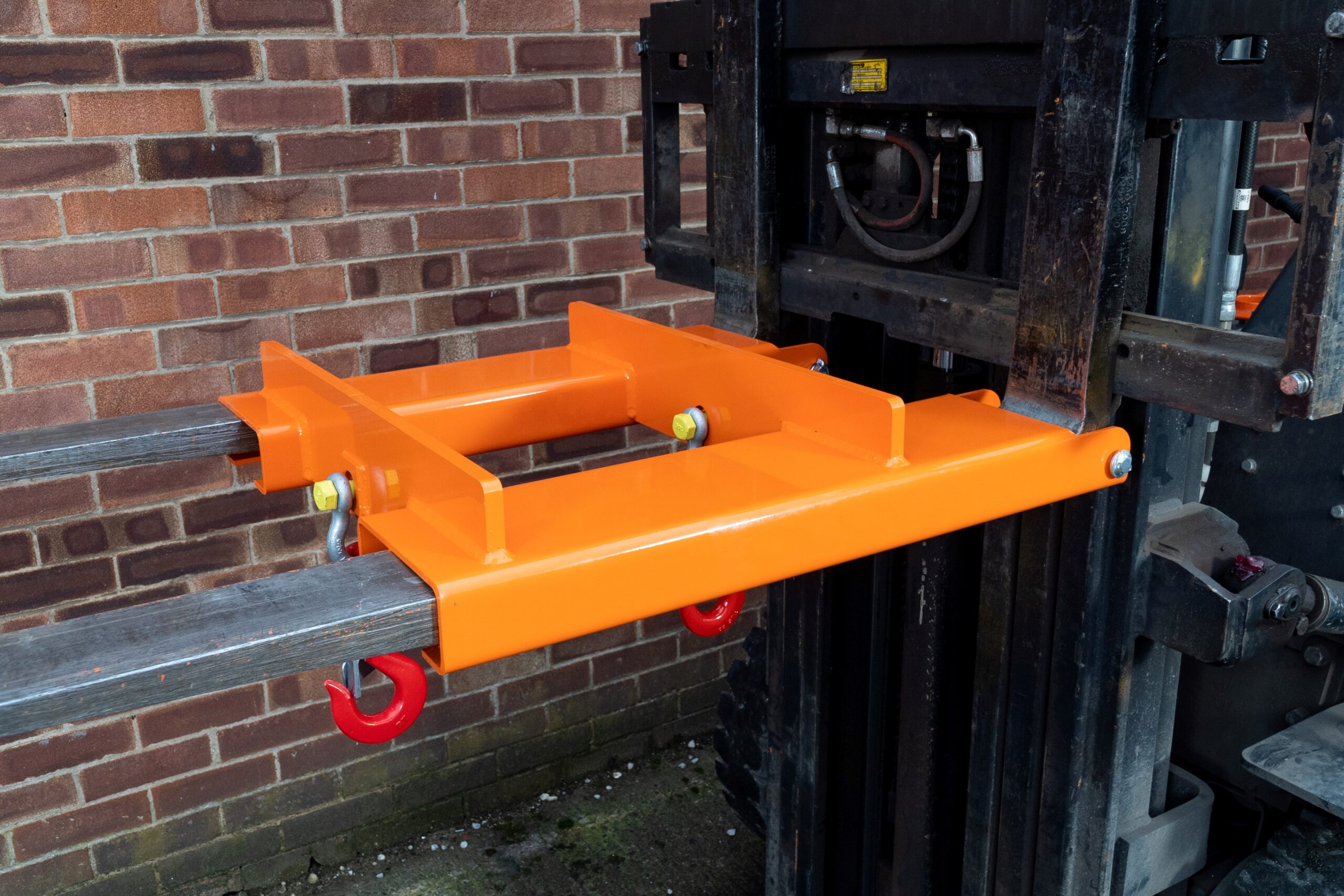

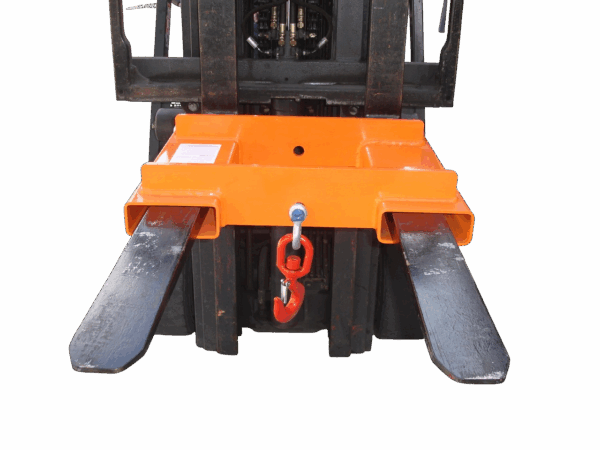

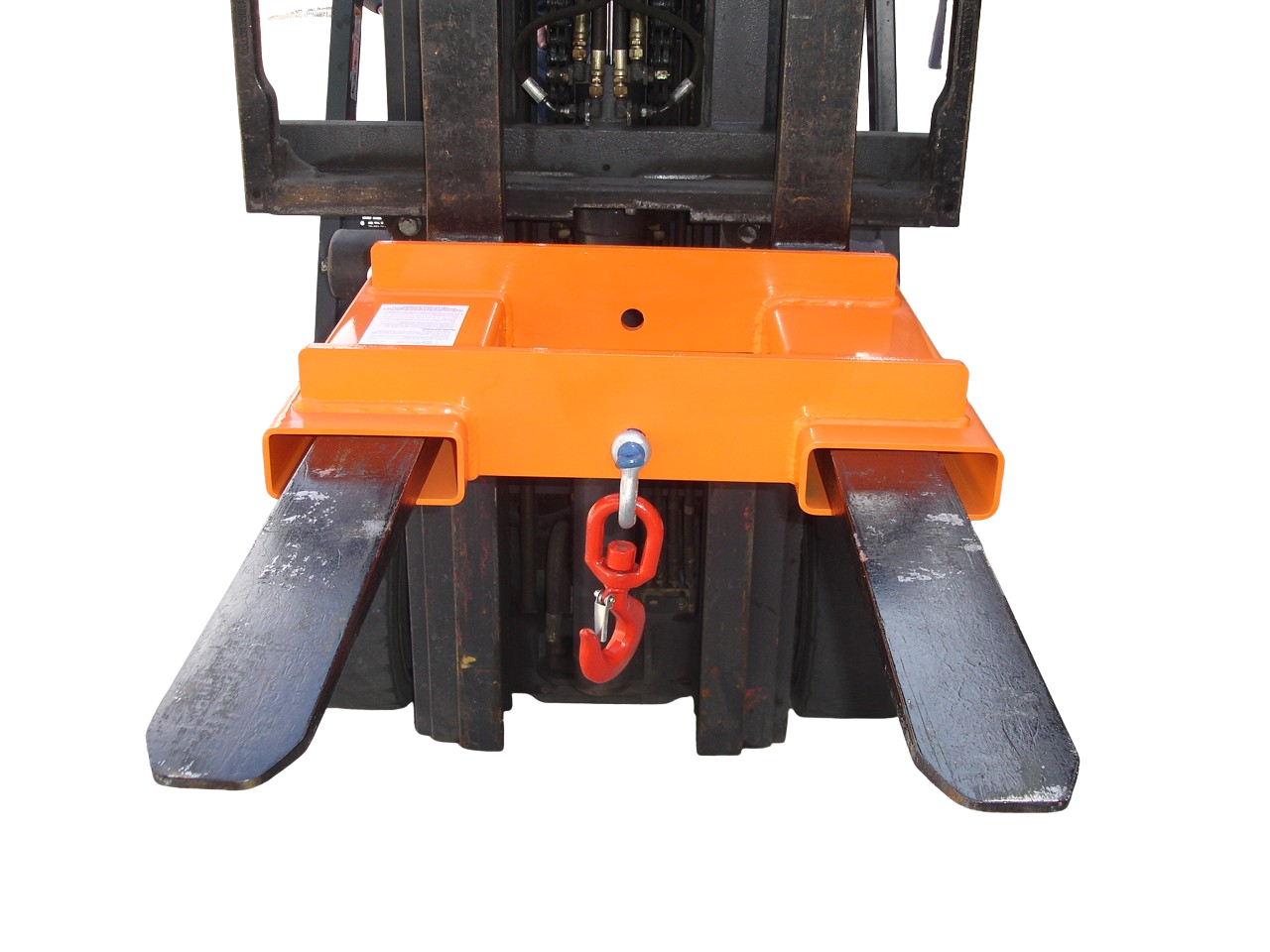

Fork Mounted Hooks provide an economical and safe method of converting a forklift truck into a mini mobile crane. Multiple lifting positions can be achieved along the fork blade.
STANDARD FEATURES
- Two fixed lifting points along the fork blade Supplied complete with single swivel hook and bow shackle
- Maximum fork section 150 x 50 mm at 481 mm Centre’s.
- Zinc plated heel pins for safe attachment to truck
- Painted bright orange for safety
OPERATION
- Position the forks to the correct distance apart to locate into fork pockets.
- Remove the heel pins from the attachment.
- Drive the forks into the fork pockets.
- Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into hole provided.
- The attachment is now ready for use.
