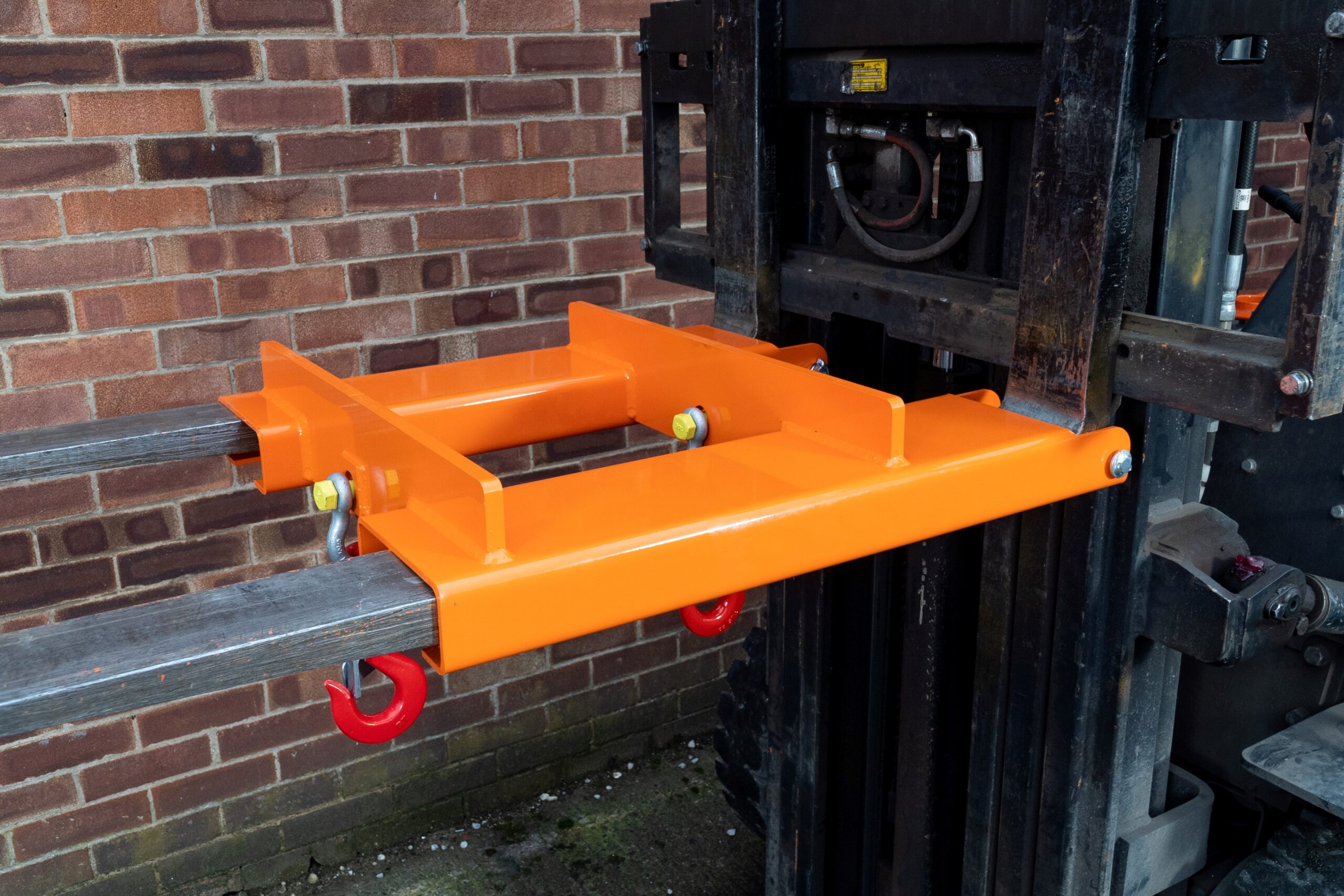

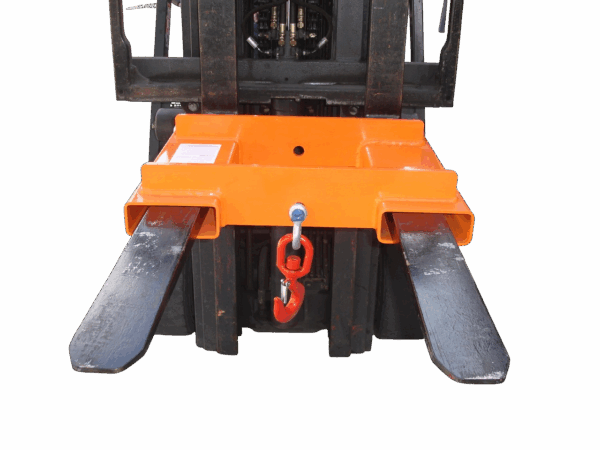

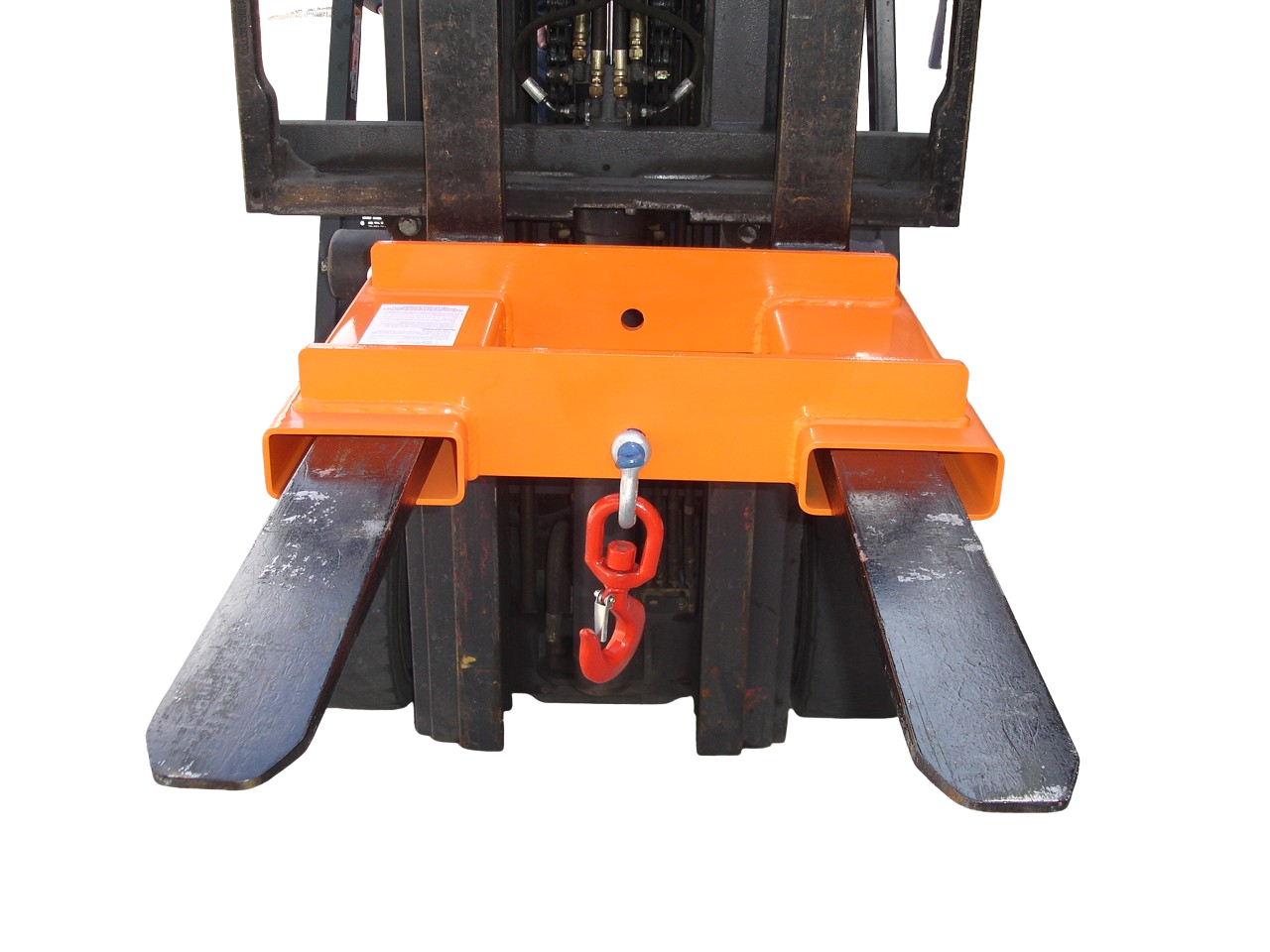

Forklift Fork Mounted Hook

The Forklift / Telehandler Fork Mounted Hook provides an economical and safe method of converting a forklift truck into a mini mobile crane. The Forklift / Telehandler Fork Hook is fixed to the forks using Heelpin retention. Easy to fit to forks, this Forklift Hook is a quick and easy way to transform any MHE into a mobile crane. There are multiple models available dependent on requirements with the specific Telehandler Fork Mounted Hook, and The Eco Hook for maximum versatility.

STANDARD FEATURES

• Two fixed lifting points along the fork blade Supplied complete with single swivel hook and bow shackle
• Maximum fork section 150 x 50 mm at 481 mm Centre’s.
• Zinc plated heel pins for safe attachment to truck
• Painted bright orange for safety

OPERATION

• Position the forks to the correct distance apart to locate into fork pockets.
• Remove the heel pins from the Fork Mounted Hook.
• Drive the forks into the fork pockets.
• Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into hole provided.
• The attachment is now ready for use.

View our full Hooks range here.

If you have any questions relating to the Forklift / Telehandler Fork Mounted Hook or any in our Forklift Attachments range then please call 0330 1281 247, email sales@tag-online.co.uk, find us on LinkedIn and Facebook or talk to us using our chat function on the right of this page. However you contact us, one of our team will be on hand to discuss your requirements, delivery or advise on the most appropriate equipment for your needs. You can also visit our eBay shop here!
