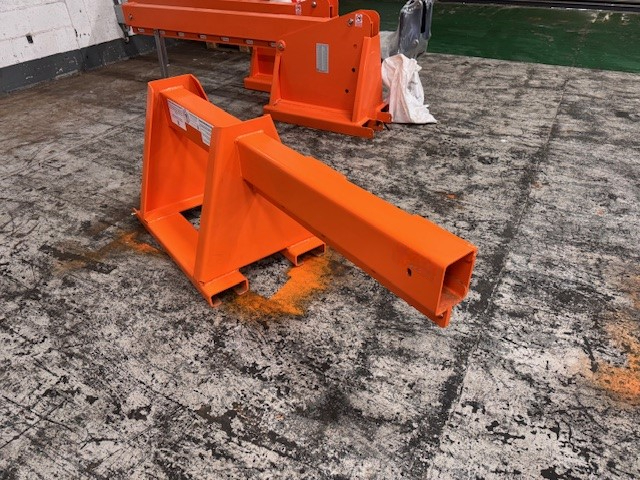

Ex. Hire Forklift Fork Mounted Jib 3000kg

When height is not at a premium, but maximum lift capacity is critical, the Forklift Fork Mounted Jib allows the movement of long and awkward loads from inaccessible locations with the potential of 4 different lifting centres.

Applicable on both Telehandlers and standard Forklifts, this Forklift Jib attachment is a quick and easy to attach way to streamline any operation and provide the extra reach needed.

STANDARD FEATURES

• Multi hook positioning from 1000-1750 load centres
• Supplied complete with single swivel hook and bow shackle
• Maximum fork section 150 x 50 mm at 435 mm centres
• Zinc plated heel pins for safe attachment to truck
• Painted bright orange for safety

OPERATION

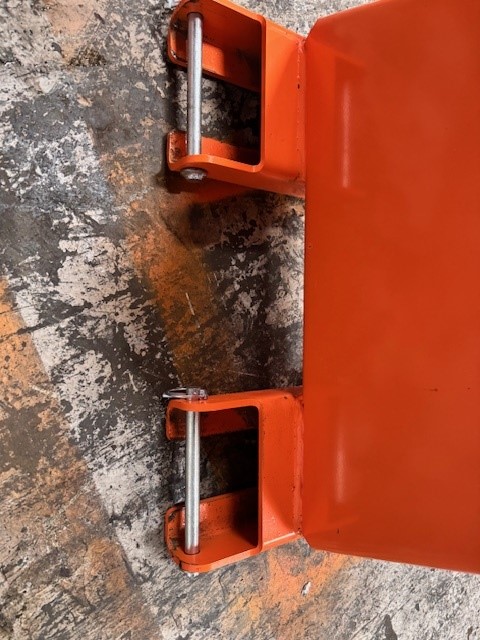

• Position the forks to the correct distance apart to locate into fork pockets.
• Remove the heel pins from the attachment.
• Drive the forks into the fork pockets.
• Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into hole provided.
• Position the swivel hook and shackle to the desired lifting point, ensuring that the shackle is adequately tightened.
• The attachment is now ready for use.

View our extensive Telehandler and Forklift Jib Range here
