240L Forklift Wheelie Bin Lifter

The Fork Mounted Forklift Wheelie Bin Lifter is designed to safely lift, move and empty 90-240 Litre Wheelie Bins. With this type of waste management becoming more and more popular by the day, this attachment can offer a solution to the associated logistical and time-keeping constraints. The winch is also equipped with a fail safe return mechanical stop to prevent the bin from swinging back once the handle is released.

STANDARD FEATURES

• Winch complete with mounting bracket and 3mm diameter lifting wire
• Fixed rotating pulley wheel
• Zinc plated heel pins for safe attachment to truck
• Painted bright orange for safety

OPTIONAL FEATURES

• Support stand complete with castors (2 swivel & 2 braked)

OPERATION

• Position Winch on front left hand Overhead Guard Leg ensuring that the cable is positioned to the outer face of the truck, using the clamping plates and 4 bolt fixings (length of threaded bar to be cut down to suit accordingly).
• Position the forks to the correct distance apart to locate into fork pockets of the attachment.
• Remove the heel pins from the attachment.
• Drive the forks into the fork pockets.
• Insert fork pocket heel pins directly behind the heel of the fork and attach safety lynch pin into hole provided.
• Pull the looped end of the winch cable through the pulley on the attachment.

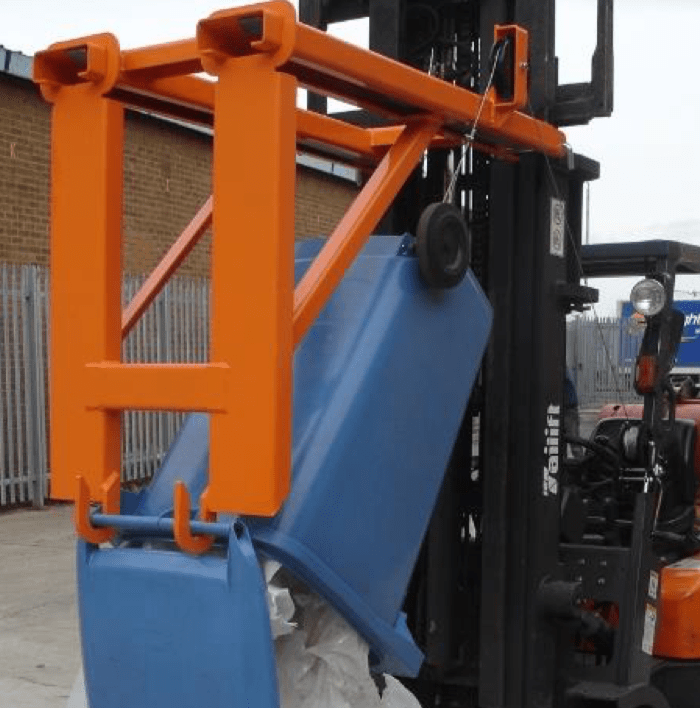

• Approach the Wheelie Bin from the rear and position the two profiled hooks under each Wheelie Bin handles and Lift.
• Raise the Wheelie Bin so as the wheel is at waist height and attach the looped cable over the left-hand wheel and then lower to safe level.
• Proceed to the tipping area and once correctly positioned raise the wheelie bin to the desired height ensuring that the safety catch on the winch is released prior to lifting.
• Once at the correct height start to wind the winch until the contents of the Wheelie are fully discharged (you may want to engage the safety catch so as to hold the position of the wheelie bin).
• Once empty release the safety catch (if engaged) ensuring that you have hold on to the winch handle prior to its release and continue to unwind until the wheelie bin is near vertical again.
• Remove the looped cable from the Wheelie Bin and lower to the ground.
• You are ready for your next lift.
